Our Products

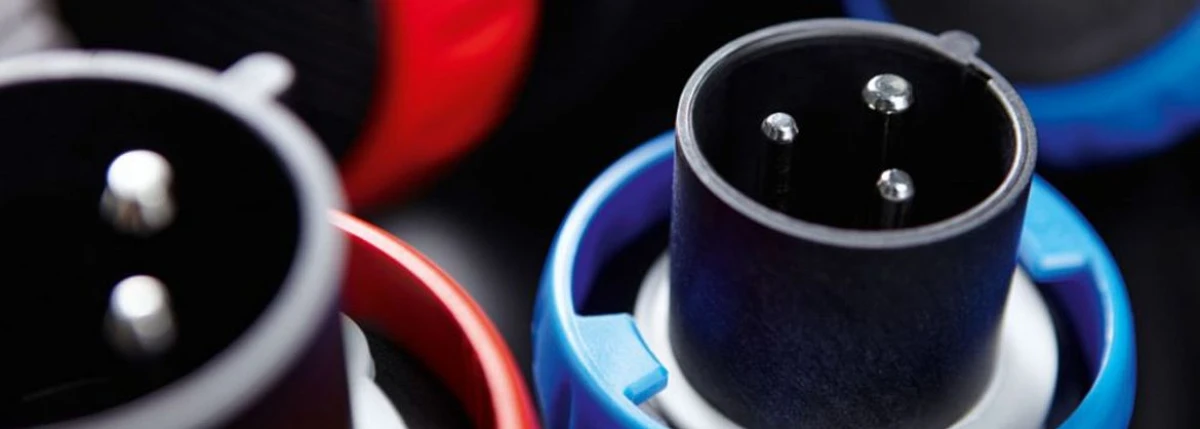

Plugs and Sockets
Wide range of explosion-protected plugs and sockets, plug connectors.
R. STAHL's plugs and sockets and plug connectors can be used to conduct, connect and distribute electrical energy without the risk of explosion. Offering a wide variety of products, this is one of the most extensive ranges on the market. The integrated load disconnect switches afford even greater safety.
R. STAHL's plugs and sockets and plug connectors can be used to conduct, connect and distribute electrical energy without the risk of explosion. Offering a wide variety of products, this is one of the most extensive ranges on the market. The integrated load disconnect switches afford even greater safety.
Wall-mounting Sockets 16 A Series 8570/11
Product Type:8570/11-406-S001
Rated operational current: 16 A
Entry 1 type: 8161/7-M25-1707
Entry 2 type: 8161/7-M25-1707 with plug
Product Description: Wall-mounting socket 16 A
Rated operational voltage: 380 to 415 V AC
Auxiliary contacts: 1 (1 NO)
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + PE
Rated operational current: 16 A
Entry 1 type: 8161/7-M25-1707
Entry 2 type: 8161/7-M25-1707 with plug
Product Description: Wall-mounting socket 16 A
Rated operational voltage: 380 to 415 V AC
Auxiliary contacts: 1 (1 NO)
Colour code: red
Coding (clock hour position): 6
Detailed number of poles: 3 P + PE
